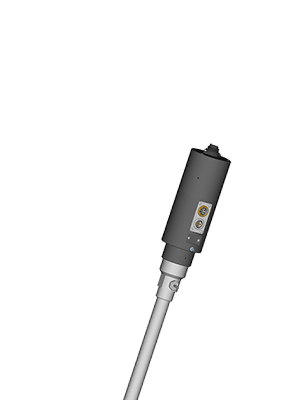

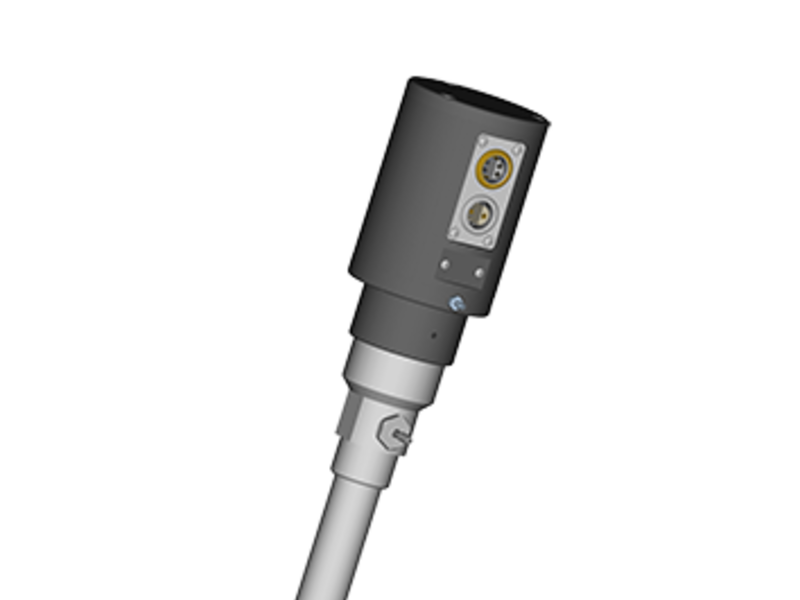

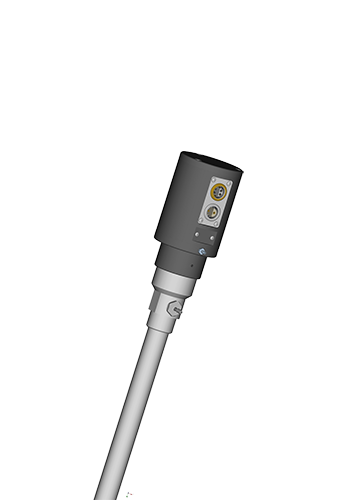

The oxygen probe SSK 01
The oxygen probe for the most difficult applications
- Robust, reliable oxygen probe even for the most difficult applications such as high temperatures and high carbon levels
- Consistently modular design
- Maintenance by the manufacturer but also by the operator himself possible
- Low operating costs based on long service life
- Mechanical cleaning mechanism to minimize drift and increase service life
- Supplied with test certificate both for new device and after maintenance
- Protection tube in metallic and ceramic design (especially for high operating temperatures in horizontal installation situations)
- Available in various lengths between 400 mm and 2000 mm
- Easy to replace thanks to a wide range of industry-typical connectors
Description of funtion
Measurement
The SSK01 oxygen probe is used to determine the carbon level (C level) in industrial furnaces for processes such as gas carburizing, case hardening, hardening etc.. The measurement is carried out in situ.
Functions
The probe is characterized by its robustness, reliability, durability and modular design. It is therefore particularly suitable for measuring furnace atmospheres at high temperatures and high carbon levels. The measured probe voltage EMF corresponds to the Nernst voltage and can be converted into a carbon level in the connected evaluation electronics.
Quality control
Before delivery, each probe is tested in a test furnace under a test atmosphere traceable to a temperature measurement. The test includes a function test and a quantitative check to determine:
- Deviation in the probe signal
- Impedance of the probe (condition of the zirconium oxide tip)
- Deviation in the temperature
- Reaction to missing reference air (tightness)
The probe is supplied with a test report.
