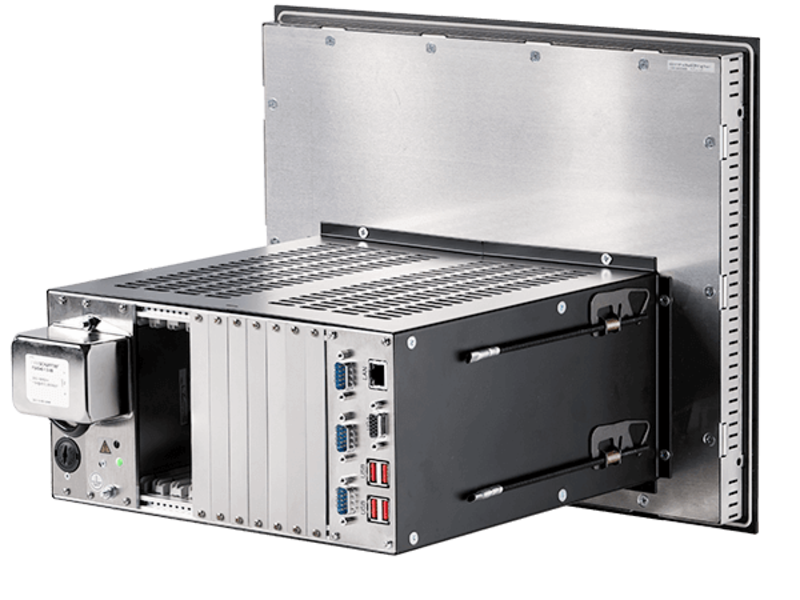

The Demig DE-VX 5315 Series

• Operation
• Technology
• Data recording
• Regulation
• Controlling
• Visualisation

Operation

• Simple, intuitive menu-controlled operation via a touch screen
• Process-oriented programming
• Switch language in the menu
• Custom configuration options for system designers

Technology

• Convenient process visualisation with a high-resolution 15" colour display
• Quick reaction times for controlling and image composition thanks to the Intel Atom processor
• Network capable via Gigabit Ethernet
• Profibus (Slave/Master) connection possible
• Remote communication via modem for monitoring and maintenance
• Hardware watchdog for digital and analogue outputs and for the overall system
• Flush-mount case for control panel with seal on the front, protection level IP65

Data recording

• Recording of all process variables
• Integrated write function
• Graphic and numerical data output
• Print functions
• Quality certification under DIN ISO 9000

Regulation

• Multi-system regulation
• All standard control algorithms with parameter switching and setpoint correction
• Special functions (such as diffusion processes, F value calculation)

Controlling

• Integrated PLC (S5© and S7© compatible)
• Manual operating mode
• Sequence control
• Special functions (such as impulse firing system)

Visualisation

• Process view(s) with status display
• Alarm and report display with help function
• Online process variable illustration, numerical and as a trend display

• System computer – Unit
• Memory
• Interfaces/connections
• Display
• Operation
• Safety.
• Installation/Assembly
• Inputs/outputs
• Programmer/controller

System computer – Unit

• Industrial computer with AMD-G Series CPU
• Integrated PLC, S5© and S7© compatible instruction set, max. PLC program length: 60,000 commands with time requirement for 1,000 Bit commands of < 0.2 ms
  up to 256 timers, 1024 messages, 1024 alarms (optional switch-on delay)

Memory

• 2 GB working memory
• 8 GB flash memory for operating program and configuration memory
• 4 MB SRAM (battery-buffered for current process status. Treatment programs and measured data recording)

Interfaces/connections

All interfaces (incl. USB) are insulated from the supply and system potential.

• COM1 DIN-RS232 (galvanically isolated)
• COM2 DIN-RS232/RS422/RS485 (galvanically isolated and with software-controlled termination)
• COM3 DIN-RS232/RS422/RS485 (galvanically isolated and with software-controlled termination)
• 4 USB interfaces (galvanically isolated) for external keyboard, mouse, printer, etc.
• 1 X Gigabit Ethernet, TCP/IP protocol for configuration, remote control, control system connection, Modbus/TCP, Auto MDI-X
• Logs e.g. RK 512, Modbus, 3964R
• Power supply input voltage range from 110V AC to 230V AC, 50 – 63 Hz
• Profibus-DP-Slave (optional) (EN 50 170/DIN 19245 Part 1) 9.6Kbit/s-12Mbit/s, automatic bit rate detection,
  E/A RS 485 wiring, DSUB-9 connector, maximum 244 bytes each input and output data
• Profibus-DP-Master (optional) (EN 50 170/DIN 19245 Part 1) to connect up to 125 slaves, 9.6Kbit/s-12Mbit/s, automatic bit rate detection, E/A RS 485 wiring, DSUB-9 connector, maximum 512 bytes each input and output data. Configuration via external PC software (must be ordered separately).

Display

• 15" TFT LCD colour display with extra large viewing angle, XGA resolution (1024×768 Pixel)
• Standard VGA interface for optional auxiliary motor

Operation

• Membrane front unit (according to DIN EN 60529, protection level IP 65 with touch screen
• Externally connectable USB keyboard
• Externally connectable USB mouse
• Unicode language support
• Multiple language switches during running time

Safety.

• Double safety function with global and local watchdog functions
• Power failure monitoring
• Copy and knowledge protection

Installation/Assembly

• Front plate with integrated seal IP65
• Ambient operating temperature 0…+45°C
• Relative humidity 0…90% non-condensing at +40°C and under 3000m
• Storage temperature -20…+60°C
• Overvoltage category III (according to DIN EN 60664-1)
• Degree of contamination 2 (according to DIN EN 60664-1)

Inputs/outputs (each max. extension indicated)

Programmer/controller (max. extension)

• AD8
• DA8
• AD 4/DA 2
• AD 4/DA 2G
• IN 32
• OUT 32
• IN24 /OUT 16
• Profibus DP Master
• Profibus DP Slave

Technical data I/O cards printed circuit boards

AD8: 8X analogue input card

Article number: 601613

• All inputs are galvanically isolated from one another and the system potential
• DC voltage, direct current measurement possible
• Inputs configurable: 0…100mV 0…500mV
• 0…2V 0…10V
• 0…20mA
• 0…400 Ω (2/3/4 conductor technology)
• Error < 0.1% of measurement range
• Any combination of input writing
• Min. measurement time per channel 20mS
• Double comparison point measurement in the connection plug

Linearisation is included in the scope of delivery for the following thermal elements:

• Cu-CuNi type U ( -200 … +600 °C)
• Fe-CuNi type L ( -200 … +900 °C)
• NiCr-CuNi type E ( 0 … +1000 °C)
• Ni-CrNi type K ( -200 … +1370 °C)
• PtRh-AuPdPt ( -100 … +1300 °C)
• PtRh13-Pt type R ( 0 … +1740 °C)
• PtRh10-Pt type S ( 0 … +1760 °C)
• PtRh30-PtRh6 type B ( 0 … +1800 °C)
• WRe3-WRe25 ( 0 … +2400 °C)
• WRe3-WRe26 ( 0 … +2500 °C)
• NiCrSi-NiSi type N ( -270 … +1400 °C)
• in addition to Pt 100 ( -200 … +800 °C)
• Separate linearisations and calculations configurable

DA8: 8X analogue output card

Article number: 601615

• All outputs are galvanically isolated from the system potential
• Outputs: 0…10V power rating >= 1k Ω
• 0(4)…20mA  load <= 1000 Ω
• Resolution 12 Bit/0.025%
• Output rate dependent on configuration (min. every 100ms).
• Local watchdog function integrated

AD4/DA2: Analogue combi card

Article number: 601614

Analogue inputs (4):

• All inputs are galvanically isolated from one another and the system potential
• DC voltage, direct current measurement possible
• Inputs configurable: 0…100mV 0…500mV
• 0…2V 0…10V
• 0…20mA
• 0…400 Ω (2/3/4 conductor technology)
• Error < 0.1% of measurement range
• Any combination of input writing via configuration software
• Min. measurement time per channel 20mS
• Comparison point measurement in the connection plug

Linearisation is included in the scope of delivery for the following thermal elements:

• Cu-CuNi type U ( -200 … +600 °C)
• Fe-CuNi type L ( -200 … +900 °C)
• NiCr-CuNi type E ( 0 … +1000 °C)
• Ni-CrNi type K ( -200 … +1370 °C)
• PtRh-AuPdPt ( -100 … +1300 °C)
• PtRh13-Pt type R ( 0 … +1740 °C)
• PtRh10-Pt type S ( 0 … +1760 °C)
• PtRh30-PtRh6 type B ( 0 … +1800 °C)
• WRe3-WRe25 ( 0 … +2400 °C)
• WRe3-WRe26 ( 0 … +2500 °C)
• NiCrSi-NiSi type N ( -270 … +1400 °C)
• in addition to Pt 100 ( -200 … +800 °C)
• Separate linearisations and calculations configurable

Analogue outputs (2):

• All outputs are galvanically isolated from the system potential
• Outputs: 0…10V power rating >= 1k Ω
• 0(4)…20mA  load <= 500 Ω
• Resolution 12 Bit/0.025%
• Output rate dependent on configuration (min. every 100ms).
• Local watchdog function integrated

AD4/DA2: Analogue combi card with limit value switch

Article number: 601616

Like article 601614 with the following addition

Comparator inputs (2):

• The two inputs 0 ... 10V are on the potential of the analogue outputs, and are compared with one another internally.
• Potential-free relay output switches depending on the result of the comparator.

IN32: 32x digital input card

Article number: 601611

• All inputs are galvanically isolated from the system potential by optocouplers
• Input potential 0V…30V (DC);  logical 0 < 5V logisch 1 > 15V
• Hardware debouncing of all inputs, signal length either 1.6ms/0.14ms
  (longer or shorter signal lengths possible upon request)

OUT32: 32x digital output card

Article number: 601612

• All outputs are galvanically isolated from the system potential by optocouplers
• Switching capacity per output max. 30V/max. 0.5A at max. 12W (resistive load)
• External power supply to the output transistors 24V DC ± 15%
• Local watchdog function integrated

IN24/OUT16: 24x IN/16x OUT card

Article number 601608

• All inputs are galvanically isolated from the system potential by optocouplers
• Input potential 0V…30V (DC) 15mA;  logical 0 < 6V logisch 1 > 10V
• Hardware debouncing of all inputs, min. signal length 200ms
  (shorter signal lengths possible upon request)
• All outputs can handle a load of 0.5A (all outputs can be switched on at the same time)
• Short circuit resistance for all outputs
• Supply voltage 18VDC..36VDC
• Local watchdog function integrated
• Outputs are switched off when the supply voltage is < 16V

Profibus Master

Article number 601837

• EN 50 170/DIN 19245 Part 1
• To connect up to 125 slaves,
• 9.6Kbit/s- 12Mbit/s, automatic bit rate detection,
• E/A RS 485 wiring, DSUB-9 connectors galvanically isolated.
• Maximum 512 bytes each of input and output data.
• Configuration via external PC software

Profibus Slave

Article number 601821

• EN 50 170/DIN 19245 Part 1
• 9.6Kbit/s- 12Mbit/s, automatic bit rate detection,
• E/A RS 485 wiring, DSUB-9 connectors, galvanically isolated.
• Maximum 244 bytes each of input and output data
