Accessories

External ECB bus

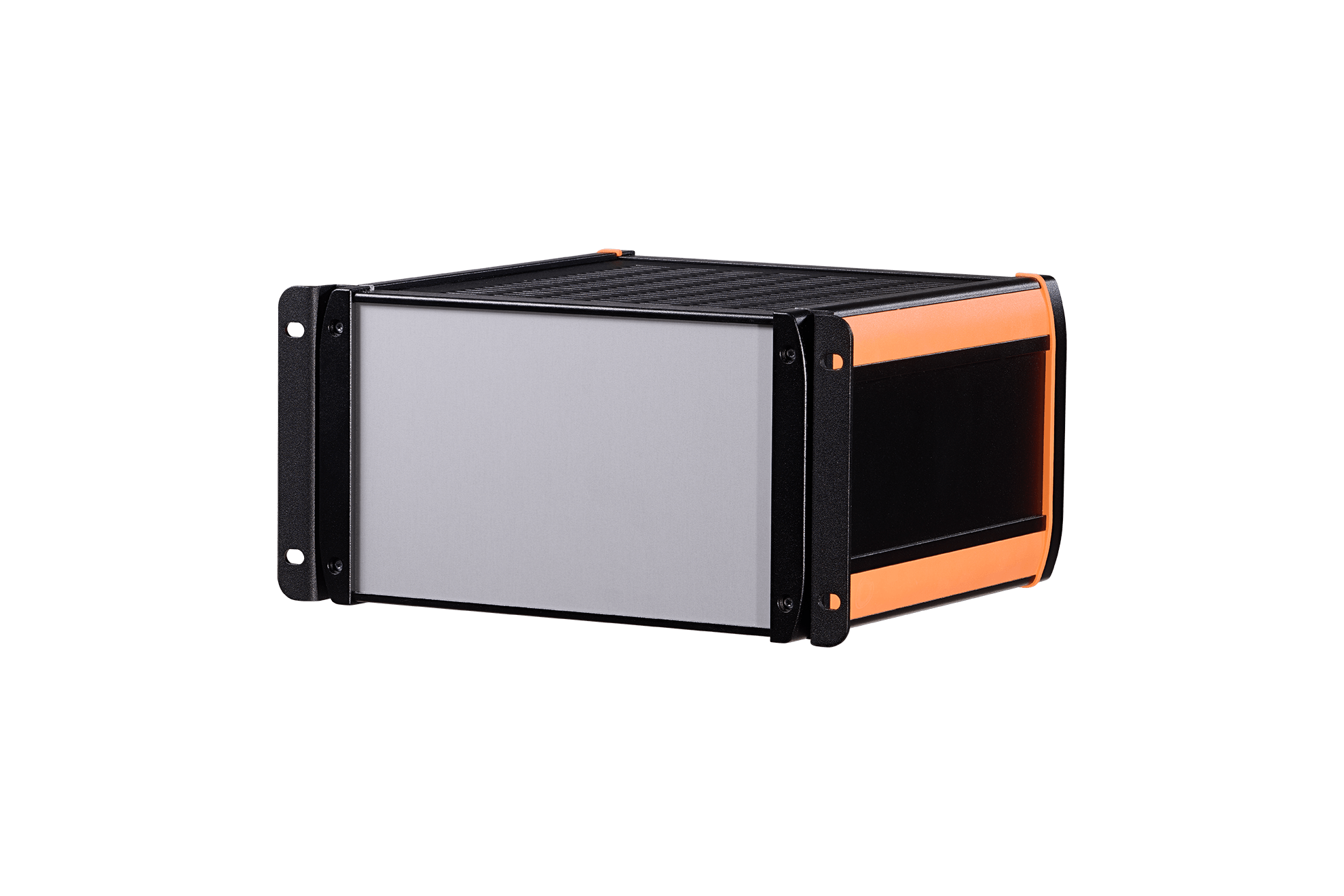

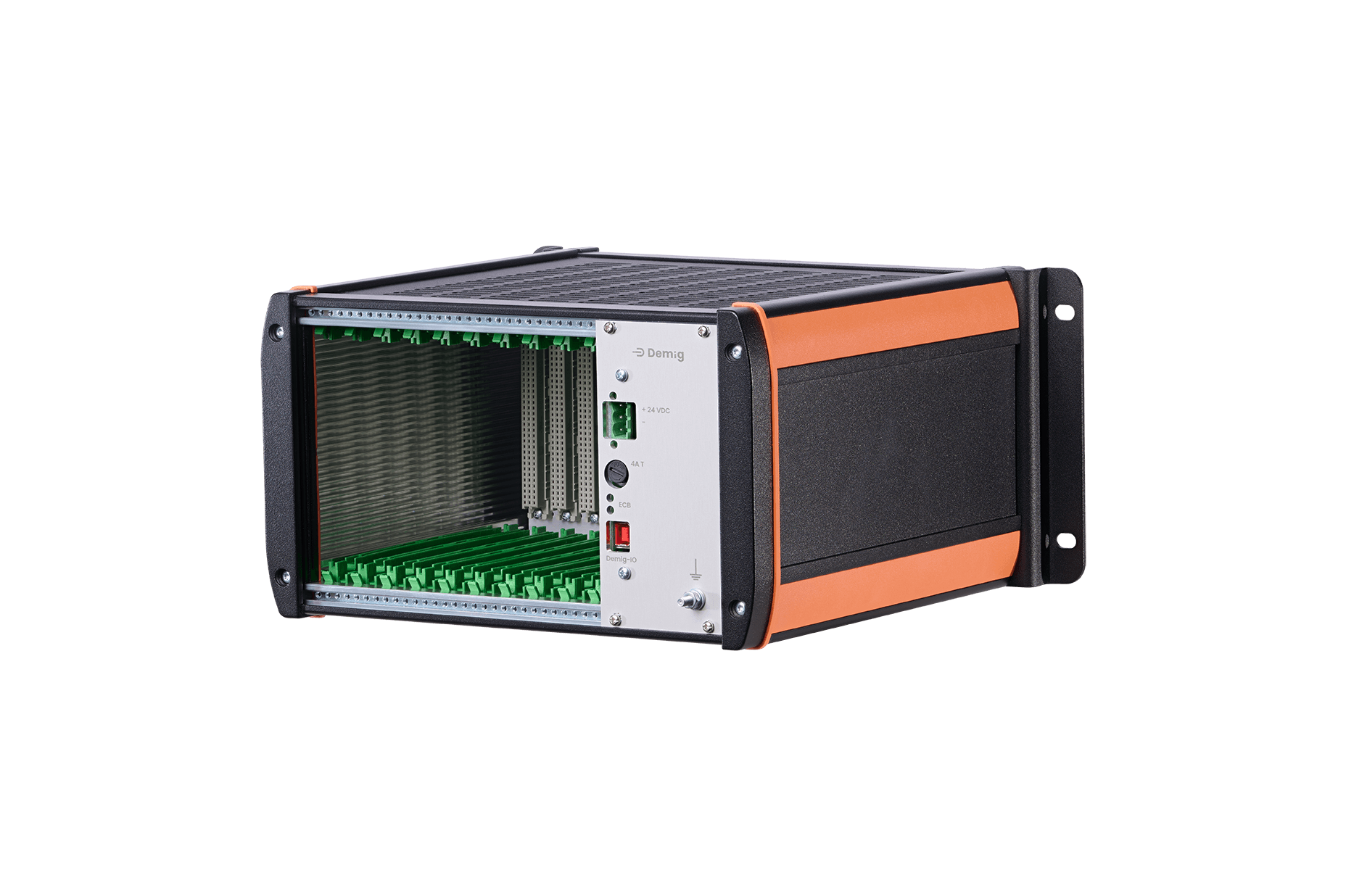

DE-CE ECB-01

Item number: 602831



Box for I/O cards to be mounted decentrally in the control cabinet

Up to 10 slots for I/O cards for the Europe Card Bus (ECB)

Slots can be expanded with additional box

Compatibility with almost all Demig cards, must be checked before installation!

USB cable max 5 meters

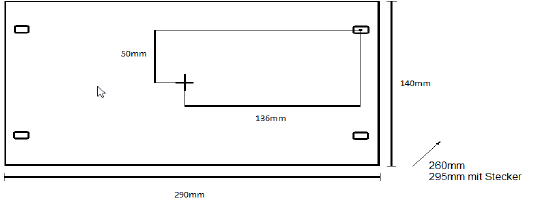

Dimensions: approx. 290x140x4mm

Installation depth: approx. 260 mm (295 mm with plug)



Power supply:

24V DC ± 15%

Power max. 50W, typically 10-20W

I/O cards

8 Analog IN card

Item number: 601613

8-fold analog input card

  • All inputs are galvanically isolated from each other and from the system potential
  • DC voltage, DC current measurement possible
  • Inputs configurable: 0...100mV 0...500mV
  • 0...2V 0...10V
  • 0...20mA
  • 0...400 Ω (2/3/4-wire technology)
  • (error < 0.1% of the measuring range)
  • Any combination of input circuitry
  • min. Measuring time per channel 20mS
  • Double reference junction measurement in the connector plug

Linearization is included in the scope of delivery for the following thermocouples.

  • Cu-CuNi Type U ( -200 ... +600 °C)
  • Fe-CuNi Type L ( -200 ... +900 °C)
  • NiCr-CuNi Type E ( 0 ... +1000 °C)
  • Ni-CrNi Type K ( -200 ... +1370 °C)
  • PtRh-AuPdPt ( -100 ... +1300 °C)
  • PtRh13-Pt Type R ( 0 ... +1740 °C)
  • PtRh10-Pt Type S ( 0 ... +1760 °C)
  • PtRh30-PtRh6 Type B ( 0 ... +1800 °C)
  • WRe3-WRe25 ( 0 ... +2400 °C)
  • WRe3-WRe26 ( 0 ... +2500 °C)
  • NiCrSi-NiSi Type N ( -270 ... +1400 °C)
  • Pt 100 ( -200 ... +800 °C)

8 Analog OUT Card

Item number: 601615

DA 8: 8-fold analog output card

  • All outputs are galvanically isolated from the system potential
  • Outputs: 0...10V load capacity >= 1kΩ
  • 0(4)...20mA Load <= 1000 Ω
  • Resolution 12 bit/0.025%
  • Output rate dependent on configuration (min. every 100ms)
  • Local watchdog function integrated

4 Analog IN / 2 Analog OUT Card

Item number: 601614

AD 4/DA 2: Analog combination card

Analog inputs (4):

  • All inputs are galvanically isolated from each other and from the system potential
  • DC voltage, DC current measurement possible
  • Inputs configurable: 0...100mV 0...500mV
  • 0...2V 0...10V
  • 0...20mA
  • 0...400 Ω (2/3/4-wire technology)
  • (error < 0.1% of the measuring range)
  • Any combination of input wiring via configuration software
  • min. Measuring time per channel 20mS
  • Cold junction measurement in the connector plug

Linearization is included in the scope of delivery for the following thermocouples:

  • Cu-CuNi Type U ( -200 ... +600 °C)
  • Fe-CuNi Type L ( -200 ... +900 °C)
  • NiCr-CuNi Type E ( 0 ... +1000 °C)
  • Ni-CrNi Type K ( -200 ... +1370 °C)
  • PtRh-AuPdPt ( -100 ... +1300 °C)
  • PtRh13-Pt Type R ( 0 ... +1740 °C)
  • PtRh10-Pt Type S ( 0 ... +1760 °C)
  • PtRh30-PtRh6 Type B ( 0 ... +1800 °C)
  • WRe3-WRe25 ( 0 ... +2400 °C)
  • WRe3-WRe26 ( 0 ... +2500 °C)
  • NiCrSi-NiSi Type N ( -270 ... +1400 °C)
  • Pt 100  ( -200 ... +800 °C)

Analog outputs (2):​

  • All outputs are galvanically isolated from the system potential
  • Outputs: 0...10V load capacity >=1kΩ
  • 0(4)...20mA Load <= 500 Ω
  • Resolution 12 bit/ 0.025%
  • Output rate dependent on configuration (min. every 100ms)
  • Local watchdog function integrated

4 Analog IN / 2 Analog OUT card (switching output)

Item number: 601616

AD 4/DA 2: Analog combination card with limit value switch

 Analog inputs (4):​

  • All inputs are galvanically isolated from each other and from the system potential
  • DC voltage, DC current measurement possible
  • Inputs configurable: 0...100mV 0...500mV
  • 0...2V 0...10V
  • 0...20mA
  • 0...400 Ω (2/3/4-wire technology)
  • (error < 0.1% of the measuring range)
  • Any combination of input wiring via configuration software
  • min. Measuring time per channel 20mS
  • Cold junction measurement in the connector plug

Linearization is included in the scope of delivery for the following thermocouples:

  • Cu-CuNi Type U ( -200 ... +600 °C)
    Fe-CuNi Type L ( -200 ... +900 °C)
    NiCr-CuNi Type E ( 0 ... +1000 °C)
    Ni-CrNi Type K ( -200 ... +1370 °C)
    PtRh-AuPdPt ( -100 ... +1300 °C)
    PtRh13-Pt Type R ( 0 ... +1740 °C)
    PtRh10-Pt Type S ( 0 ... +1760 °C)
    PtRh30-PtRh6 Type B ( 0 ... +1800 °C)
    WRe3-WRe25 ( 0 ... +2400 °C)
    WRe3-WRe26 ( 0 ... +2500 °C)
    NiCrSi-NiSi Type N ( -270 ... +1400 °C)
    Pt 100 ( -200 ... +800 °C)

Analog outputs (2):​

  • All outputs are galvanically isolated from the system potential
  • Outputs: 0...10V load capacity >=1kΩ
  • 0(4)...20mA Load <= 500 Ω
  • Resolution 12 bit/ 0.025%
  • Output rate dependent on configuration (min. every 100ms)
  • Local watchdog function integrated

Comparator inputs (2):

  • The two inputs 0...10V are at the potential of the analog outputs and are compared internally.
  • Potential-free relay output switches depending on the result of the comparator.

32 Digital IN card

Item number: 601611

IN 32: 32-fold digital input card

  • All inputs are galvanically isolated from the system potential by optocouplers
  • Input potentials 0 V...30V (DC) 15mA; logical 0 < 5V logical 1 > 15V
  • Hardware debouncing of all inputs, min. signal length 200ms (other signal lengths possible on request)

32 Digital OUT card / 32 Digital IN-OUT card

Item number: 601612

OUT 32/IO 32: 32-fold digital input/output card

  • all outputs can also be configured as inputs
  • all outputs and inputs are galvanically isolated from the system potential by optocouplers
  • Switching capacity per output max. 30V / max. 0.5A at max. 12W (ohmic load)
  • external power supply of the output transistors 24V DC ± 15%
  • Local watchdog function integrated
  • Input potentials 0 V...30V (DC); logical 0 < 5V logical 1 > 15V
  • Hardware debouncing of all inputs, signal length optionally 1.6 ms/0.14ms (longer or shorter signal length possible on request)

24 Digital IN / 16 Digital OUT card

Item number: 601608

IN 24/OUT 16: 24-fold IN/16-fold OUT card

  • All inputs are galvanically isolated from the system potential by optocouplers
  • Input potentials 0 V...30V (DC) 15mA; logical 0 < 5V logical 1 > 15V
  • Hardware debouncing of all inputs, min. signal length 200ms (other signal lengths possible on request)
  • All outputs can be loaded with 0.5A (all outputs can be switched on at the same time)
  • Short-circuit resistance of all outputs
  • Supply voltage 18VDC...36VDC
  • Local watchdog function integrated
  • Outputs are switched off when the supply voltage is < 16V

16 Digital OUT card (relay)

Item number: 601702

OUT16: 16-fold digital output card

  • Double electrical isolation of all outputs by optocoupler and relay
  • Potential-free outputs
  • Switching capacity per output max. 65V / max. 1A at max. 60W
  • External power supply for the output relays 24V DC
  • or 24V AC effective (+10% -15%)
  • Local watchdog function integrated

Profibus slave card

Item number: 601821

Profibus-DP slave (EN 50 170/DIN 19245 Part 1)

This card is not compatible with the DE-CP or DE-CE series!

  • 9.6Kbit/s - 12Mbit/s
  • Automatic bit rate detection
  • EIA RS 485 cabling
  • DSUB-9 connector galvanically isolated
  • Maximum 244 bytes of input and output data each





Profibus master card

Item number: 601837

Profibus DP master (EN 50 170/DIN 19245 Part 1)

This card is not compatible with the DE-CP or DE-CE series!

  • 9.6Kbit/s - 12Mbit/s
  • Automatic bit rate detection
  • EIA RS 485 cabling
  • DSUB-9 connector
  • galvanically isolated
  • Maximum 244 bytes of input and output data each
