Our new DE-CB series
makes work even more efficient
The DE-CB 400 series includes compact controllers for temperature, pressure, and other process signals. Simple, text-based operation and flexible inputs/outputs make it easy to integrate into many applications.

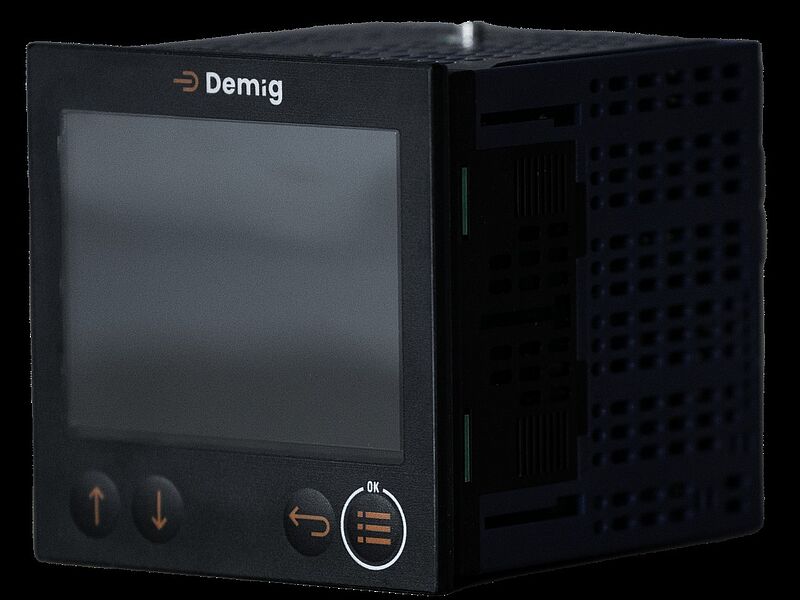

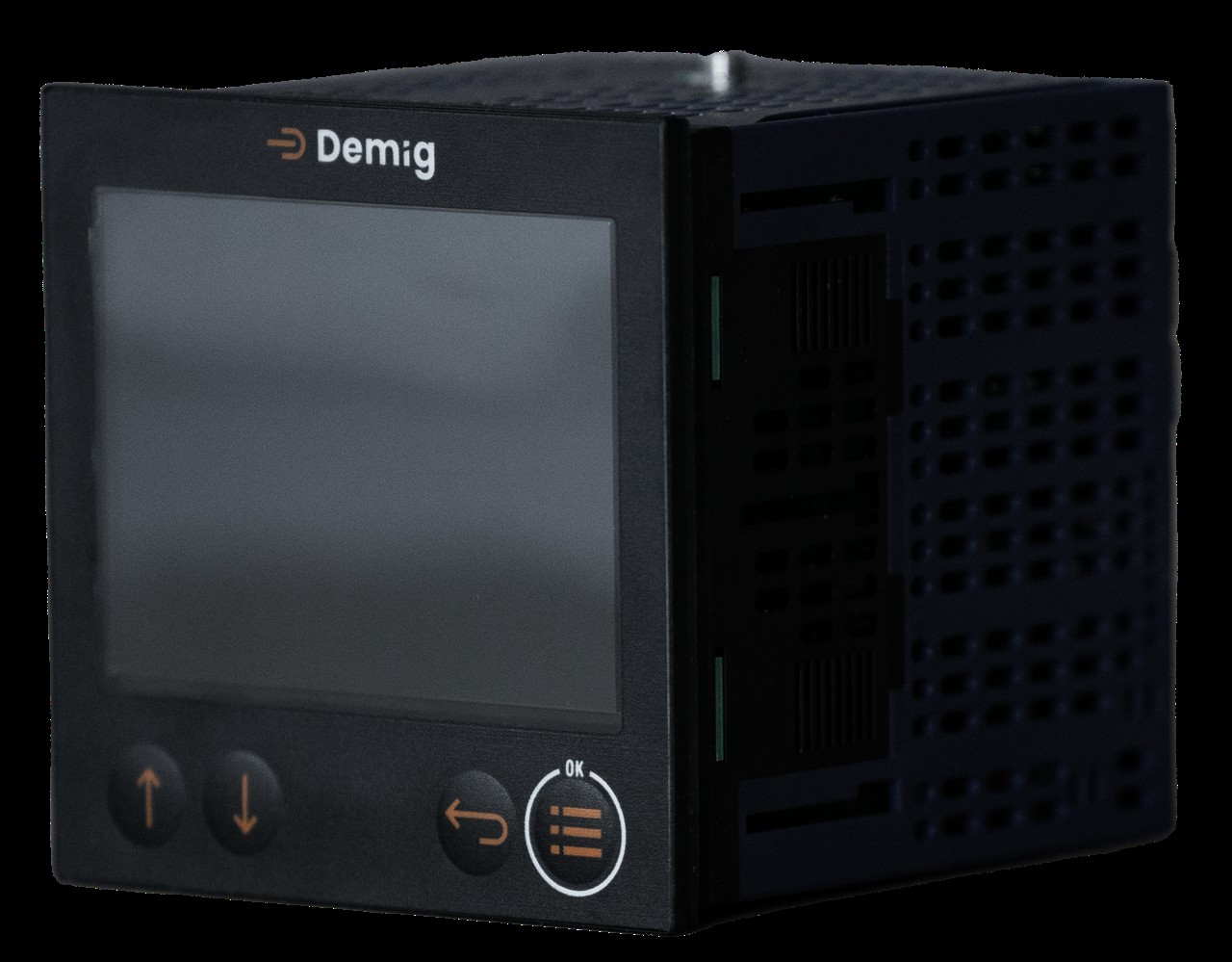

The devices offer a clear dual LCD display with pixel matrix, simple 4-button operation, and one or two control channels, depending on the model. You can reliably control temperatures, pressures, flow rates, or other process variables—including autotuning, ramp and program functions, timers, real-time clock, and service counters.
If you want to store data or document processes, data loggers, operating/service counters, and a backup/restore function are available. With the integrated configuration tool via USB or Ethernet, you can conveniently parameterize the controller on your PC.

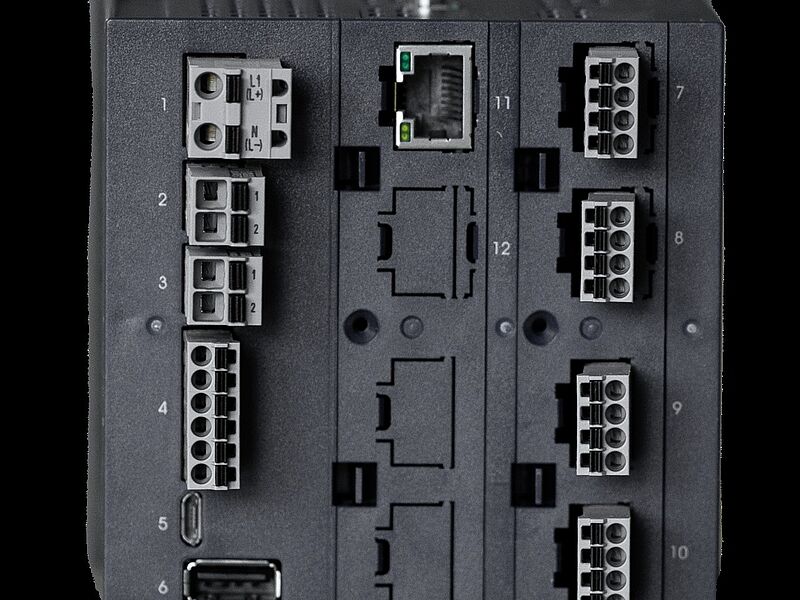

Communication takes place via Ethernet with Modbus TCP. The devices can be expanded with the DEMIG I/O system via Modbus TCP and can be seamlessly integrated into prosys/2 environments.
For advanced tasks, the DE-CB 460-01 also offers ST programming according to IEC 61131-3, math/logic functions, and a second control channel. This allows you to map even smaller automation tasks directly in the device.
In short: The DE-CB series is your compact controller for standard and more demanding applications – precise, flexible, and reliable.
Your advantages at a glance
- Compact 96×96 mm DIN housing, front IP65
- Universal analog inputs for PT100/PT1000, thermocouples, resistance, current/voltage
- Accuracy from 0.1% to 0.25% of the measuring range
- Dual LCD + pixel matrix for clear readability
- Program functions, ramps, timer, real-time clock, service counter
- Data logger + retain memory
- Ethernet (Modbus TCP) as standard
- Optional: second control channel, PLC function, math/logic (included directly with 460-01)
- Expandable via DEMIG I/O system via Modbus TCP
- USB/Ethernet configuration tool
- CE, UK, UL (listed), calibration according to CQI-9/AMS 2750 on request
Use the buttons below to access the fact sheets and operating instructions for each series.
