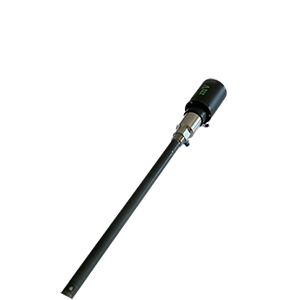

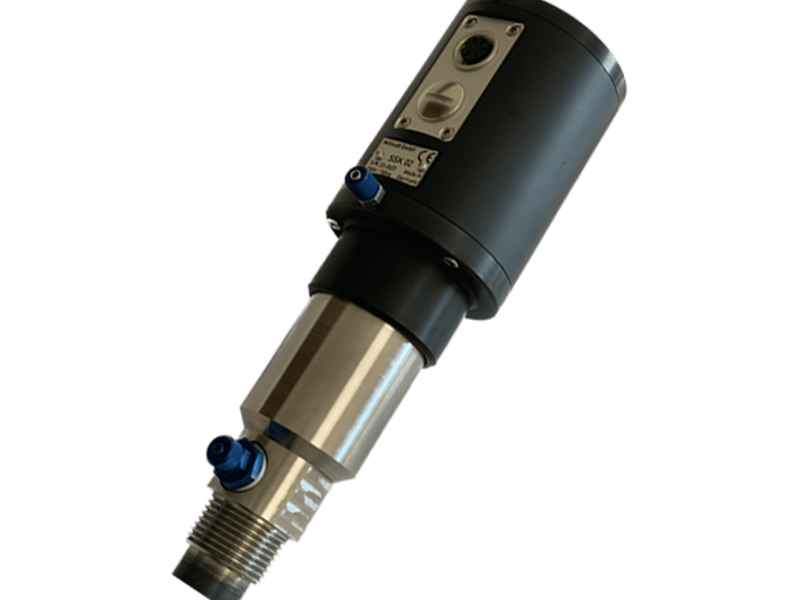

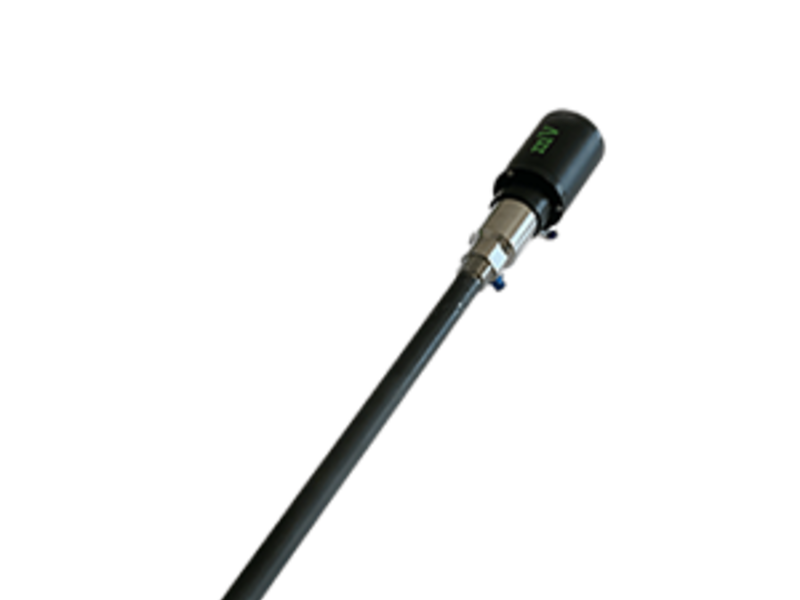

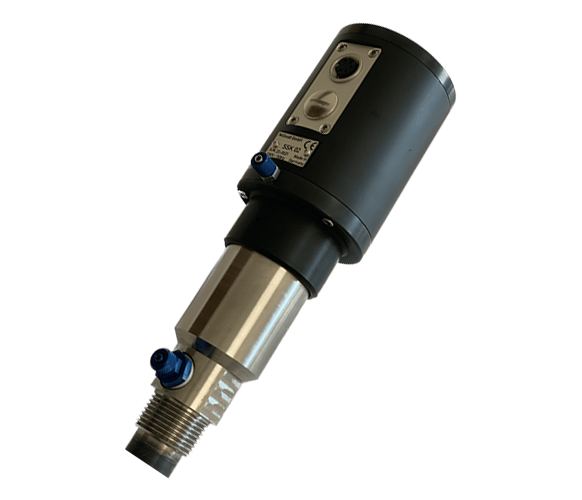

The oxygen probe SSK 02
The oxygen probe for very high measuring accuracy
- With closed zirconium dioxide tube (ZrO2)
- Suitable for the processes: Gas carburizing, case hardening, carbonitriding, neutral hardening and tempering
- Non-catalytic action
- Very high measuring accuracy
- Low operating costs based on long service life
- Supplied with test report both for new device and after maintenance
- Easy to replace thanks to a wide range of industry-typical connectors
Description of funtion
Measurement
The SSK02 oxygen probe is used to determine the carbon level (C level) in industrial furnaces for processes such as gas carburizing, case hardening, hardening etc.. The measurement is carried out in situ.
Functions
The probe is characterized by its robustness, reliability, durability and modular design. It is therefore particularly suitable for measuring furnace atmospheres at high temperatures and high carbon levels. The measured probe voltage EMF corresponds to the Nernst voltage and can be converted into a carbon level in the connected evaluation electronics.
Quality control
Before delivery, each probe is tested in a test furnace under a test atmosphere traceable to a temperature measurement. The test includes a function test and a quantitative check to determine:
- Deviation in the probe signal
- Impedance of the probe (condition of the zirconium oxide tip)
- Deviation in the temperature
- Reaction to missing reference air (tightness)
The probe is supplied with a test report.
