The process controllers of the DE-CP 54X-01 series are the perfect replacement controllers for our previous controller generations (from DE-PR 4008 series)! And the best thing about it?

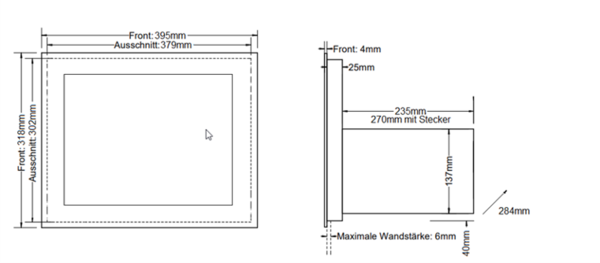

Thanks to the integrated ECB bus, you can continue to use the existing control cabinet cut-outs for the DE-CP 542-01. Thanks to the innovative cooling concept, the operating temperature has been significantly reduced! In addition, the system is protected by an integrated UPS, which ensures a controlled shutdown in the event of a power failure.
The integrated ProfiBus module can be used to establish connections to ProfiBus-compatible hardware (master or slave possible)!
The user interface provides the user with a clear and intuitive visualization and operation of the processes on a 15-inch touch display.
The system is driven by a processor that can also display complex visualizations smoothly.
The sequence programs are programmed using preconfigured process phases! The operator is automatically guided to the necessary input of variable data. Phase-dependent basic settings such as monitoring and safety functions are already stored in the system configuration.
Main and I/O with separate power supply
8-fold analog input card
Linearization is included in the scope of delivery for the following thermocouples.
DA 8: 8-fold analog output card
AD 4/DA 2: Analog combination card
Analog inputs (4):
Linearization is included in the scope of delivery for the following thermocouples:
Analog outputs (2):
AD 4/DA 2: Analog combination card with limit value switch
Analog inputs (4):
Linearization is included in the scope of delivery for the following thermocouples:
Analog outputs (2):
Comparator inputs (2):
IN 32: 32-fold digital input card
OUT 32/IO 32: 32-fold digital input/output card
IN 24/OUT 16: 24-fold IN/16-fold OUT card
